Air conditioning
The air conditioning controls the temperature, humidity, and air flow in the cabin to create a more comfortable environment.
In the center display, you can adjust the climate zones, temperature, mode, fan speed, air conditioner, and sync function.
To open the climate interface, press on the temperature or fan symbol at the bottom of the center display.
| Symbol | Function | Description |
|
ON/OFF
|
Press to turn on/off the whole system.
The second row climate control can be turned off separately at the bottom right of the climate interface.
|
|
Auto mode
|
When the mode is turned on and the temperature is set, the fan speed, air flow temperature, and air flow distribution are automatically adjusted to ensure comfort.
|
|
Air conditioner
|
Press to turn on/off the cooling function.
|
|
Eco mode
|
The mode can only be activated when the climate function is turned on. If activated, some functions are reduced to save energy, such as the cooling or dehumidifying. When the mode is activated, the ECO button illuminates.
|
|
Fast cooling
|
Press to lower the temperature in the car as quickly as possible.
|
|
Heated steering wheel
|
Press to select the intensity of the heated steering wheel.
|
|
Settings
|
Press to open the settings menu.
|
|
Recirculation mode
|
If activated, the air can be recirculated inside the vehicle in different ways. Different modes can be selected, including internal recirculation mode, external recirculation mode, and auto recirculation mode.
|
|
Blowing mode2
|
Press to freely move the blowing direction or select one of the pre-defined options.
|
|
Air distribution2
|
Press to select the areas where the air is distributed.
|
|

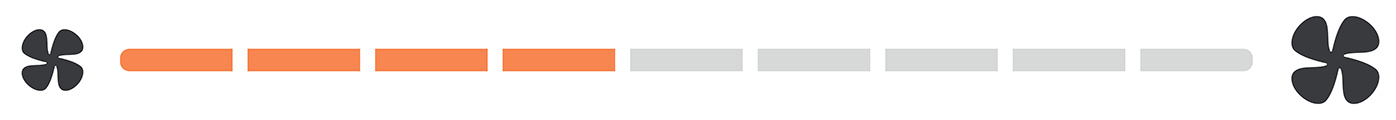

Fan speed
|
Press /to decrease/increase the fan speed, or press or slide to select a fan speed. If fan speed is reduced to 0, the climate funtion turns off.
|
|
Front windshield and windows defog/defrost
|
The front windshield defog/defrost function is used to remove mist and ice from the front windshield and windows.
|
|
Rear windshield and side mirrors defog/defrost
|
The rear windshield and side mirrors defog/defrost function is used to remove mist and ice from the rear windshield and side mirrors.
Note: The side mirrors are hot when defog/defrost is active. Do not touch the mirrors while they are heated.
|
|
Seat comfort
|
Press to activate/deactivate seat comfort for the respective left/right seat. If seat comfort is active, the symbol in the bottom toolbars appears with the activated comfort mode, for example,  .
|
|

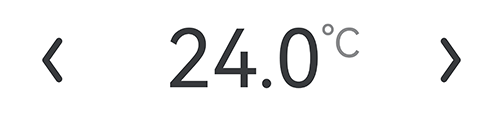

Temperature1
|
Press  / to decrease/increase the temperature.
|
1There is also a temperature slider for each front seat in the climate interface.
2Blowing mode and air distribution can be set individually for each front seat.
Other settings:
| • |  Fragrance – Select a fragrance to be used in the passenger compartment. |
| • | Sync – The temperature for the driver and passenger side can be adjusted separately or synced to the same temperature when the sync function is activated. When the temperature of front passenger seat and rear compartment is adjusted, the sync function exits automatically. |
Note: All the front vents can be adjusted up/down/left/right manually to control the air flow direction as well.
