Wiper blades
The wipers are used to remove water from your windshield, and, together with washer fluid, to maintain visibility through the windshield. Just like any other part of the car, the wiper blades will eventually become dirty, which makes them less effective. Regularly wipe the wipers down with a piece of cloth to keep them effective for as long as possible. Eventually, the wiper blades will wear out and will need to be replaced.
To replace the front wiper blades:
| 1. |
Make sure the car is in P, and that the wiper blades are free of ice and not running.
|
| 2. |
Navigate to  .
|
| 3. |
Set the wiper blades in the maintenance position.
Do the following for each wiper blade:
|
| 4. |
Pull the wiper blades away from the windshield until they are pointing upwards.
|
| 5. |

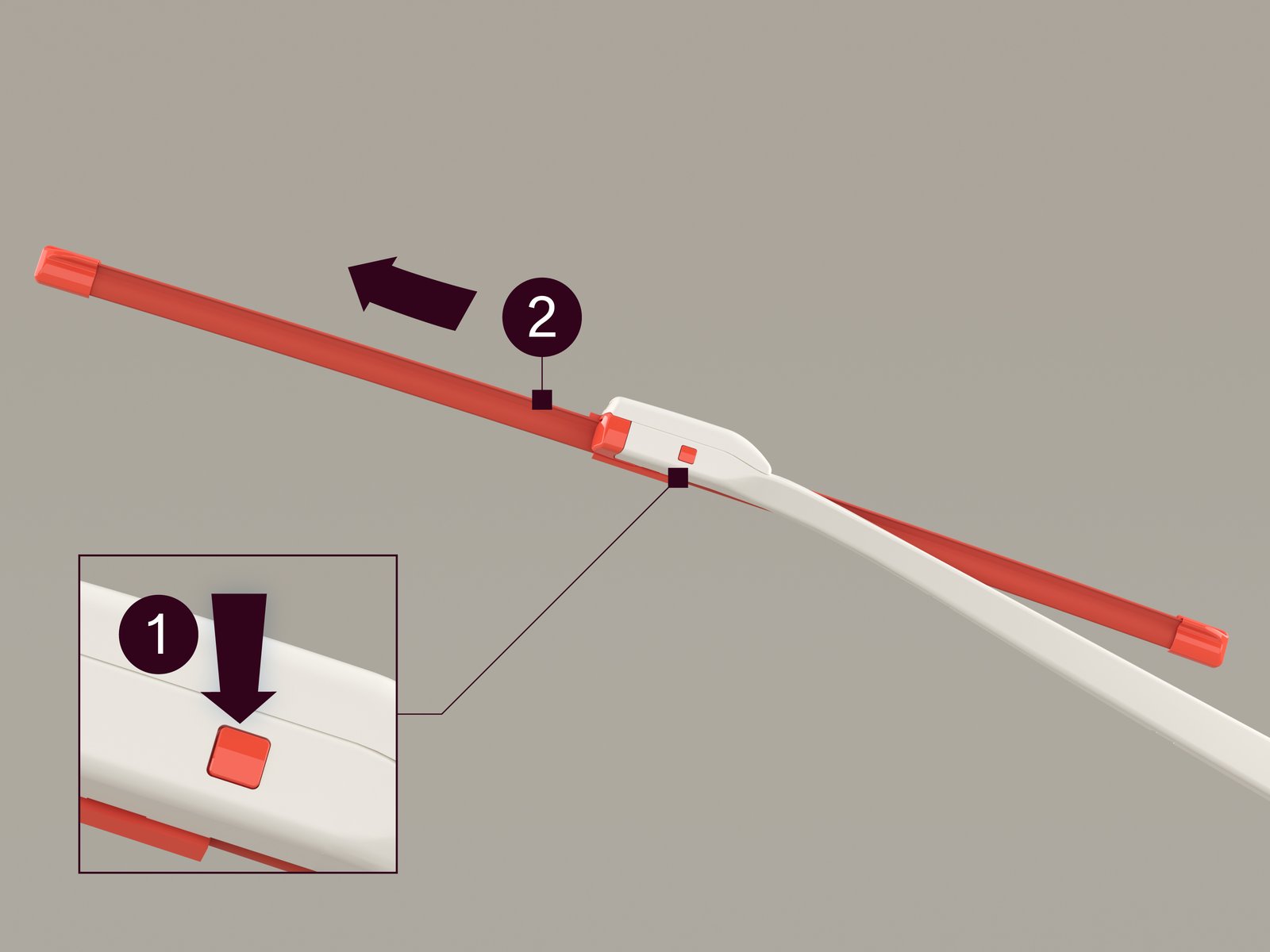

Press and hold the clip  on the wiper blade and pull the wiper blade out  .
|
| 6. |
Install the new wiper blade by following the above steps in reverse.
After both wiper blades have been replaced:
|
| 7. |
Gently return the wiper blades to the windshield.
|
| 8. |
Navigate to .
|
| 9. |
Set the wiper blades to the normal operating position.
|
Note: A towel can be placed underneath the wiper arm while replacing the wiper, to prevent it from scratching the windshield.

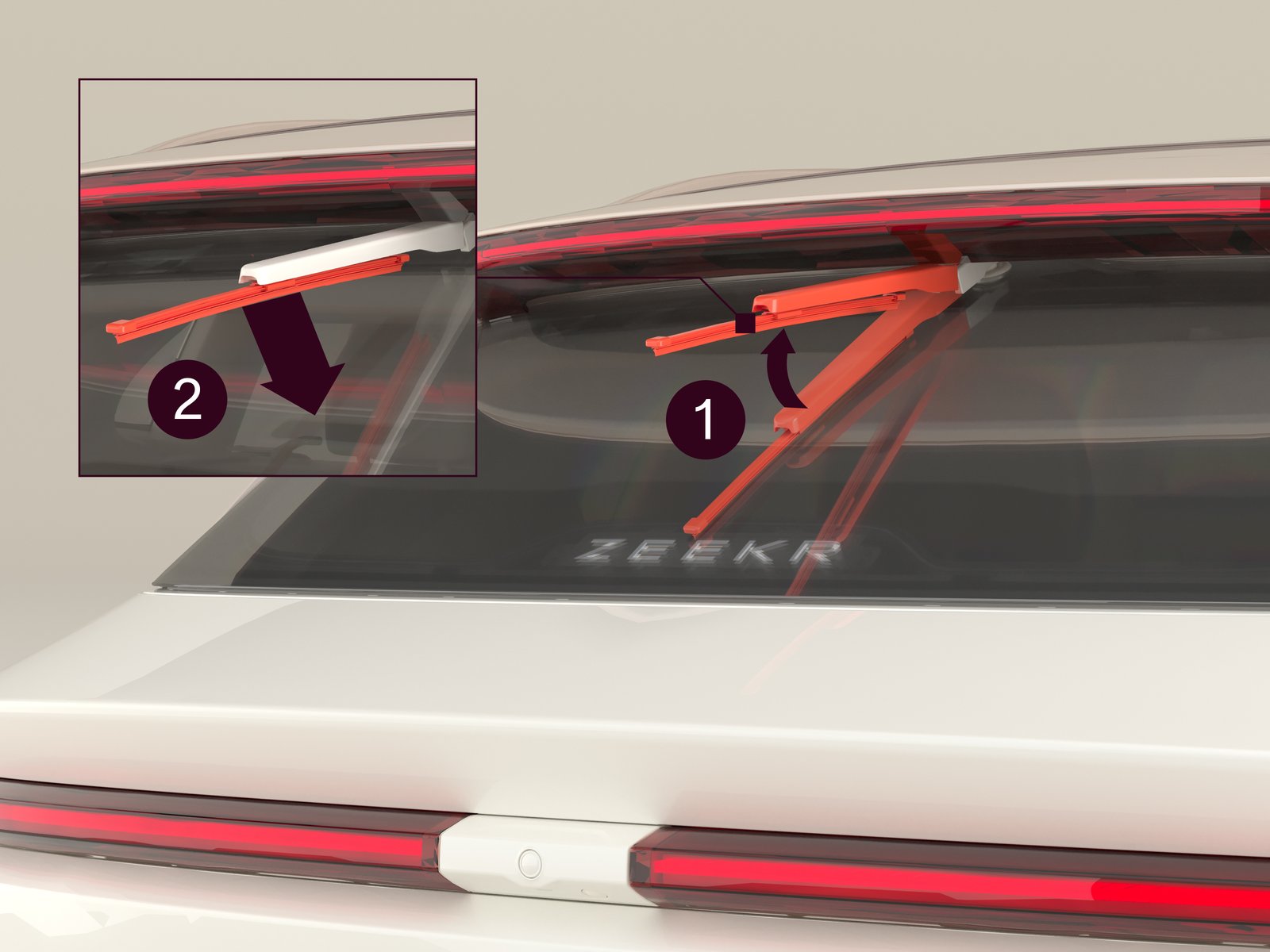

To replace the rear wiper blades:
| 1. |
Make sure the car is in P, and that the wiper blades are free of ice and not running.
|
| 2. |
Navigate to .
|
| 3. |
Set the wiper blades in the maintenance position.
|
| 4. |
Pull the wiper arm away from the windshield until it is pointing outwards . Do not pull the wiper arm more than 20° away from the windshield.
|
| 5. |
Pull the wiper blade away from the wiper arm  .
|
| 6. |
Install the new wiper blade by following the above steps in reverse.
|
| 7. |
Gently return the wiper blade to the windshield.
|
Only use compatible wiper blades. Contact a Zeekr Hi-Tech Service Center or an approved service partner for compatible wiper blades.
